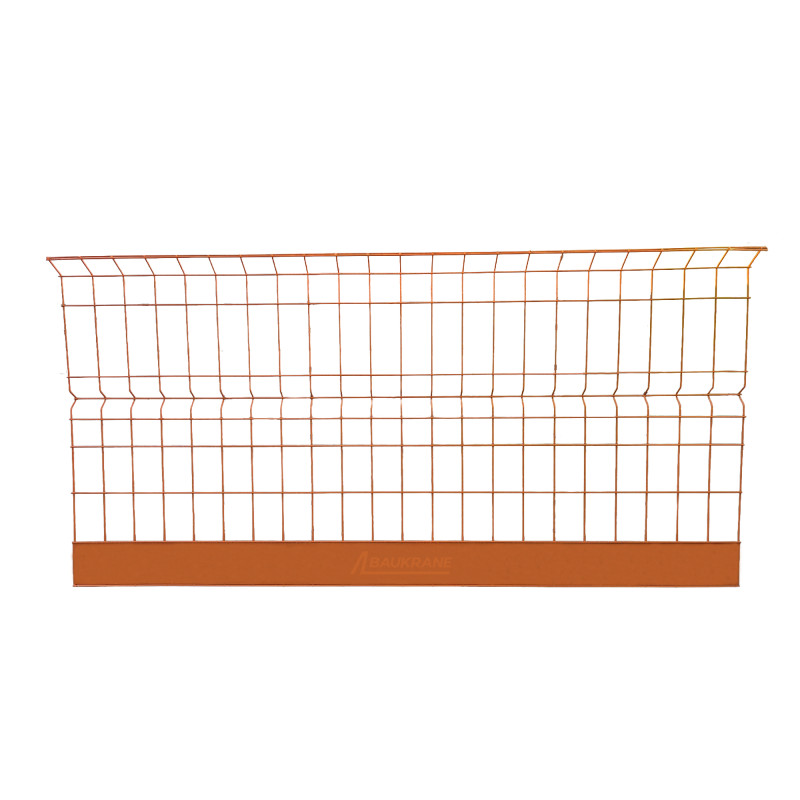

Construction Safety Mesh for Edge Protection ECO 240

Construction Safety Mesh for Edge Protection – EN 13374

Construction safety mesh is a durable solution designed to protect open edges on construction sites and reduce the risk of people, tools and materials falling from height. The steel structure is made of Ø6 mm wire, with a denser lower section made of Ø4 mm wire. This construction provides effective protection while allowing the mesh to be used as a practical temporary edge protection system.

The surface is protected with hot-dip galvanizing and powder coating, which improves resistance to corrosion, moisture and changing weather conditions. The system complies with the requirements of EN 13374 and can be used as an alternative to traditional toe boards and guardrail elements.

---

Key product advantages

• Effective edge protection: helps reduce the risk of people, tools and materials falling from height.
• Solid steel construction: made of durable Ø6 mm wire with a reinforced lower section.
• Denser lower section: Ø4 mm wire provides additional protection against smaller objects slipping through.
• Hot-dip galvanized: provides effective protection against corrosion and moisture.
• Powder coated: additional surface protection increases durability in demanding working conditions.
• EN 13374 compliant: designed for use as temporary edge protection in accordance with the applicable standard.
• Practical alternative: eliminates the need for traditional toe boards and selected guardrail elements.
• Reusable: suitable for repeated use on different construction projects.

---

Applications of the construction safety mesh

Construction safety mesh is intended for securing open edges and work areas where protection against falls is required. It can be used for:

• ✔ protecting open edges of floors and building structures,
• ✔ securing construction sites during work at height,
• ✔ protecting workers from falling from elevated work areas,
• ✔ limiting the risk of tools and construction materials falling from height,
• ✔ creating temporary safety barriers around work areas,
• ✔ replacing traditional toe boards and selected guardrail components.

---

Technical specification

PARAMETER	VALUE
Product type	Construction safety mesh
Application	Temporary edge protection on construction sites
Main wire diameter	Ø6 mm
Lower section wire diameter	Ø4 mm
Material	Steel
Corrosion protection	Hot-dip galvanizing
Additional protection	Powder coating
Standard	EN 13374

---

Safety and compliance

Construction safety mesh is designed for use as a temporary edge protection system in accordance with the requirements of EN 13374. The steel mesh creates a protective barrier along exposed edges, helping to prevent people, tools and materials from falling into lower areas.

When installing the system, all components should be positioned and secured according to the applicable installation requirements and the conditions of the specific construction site.

---

Why choose construction safety mesh?

Safety mesh for construction edge protection combines a robust steel structure with durable corrosion protection. The Ø6 mm main wire and denser Ø4 mm lower section provide a practical protective barrier, while hot-dip galvanizing and powder coating extend the service life of the product. Its design allows construction companies to efficiently secure exposed edges without relying solely on traditional wooden toe boards and guardrail solutions.

---

Construction safety mesh – reliable edge protection

Construction safety mesh is a practical and durable solution for temporary protection of exposed edges on construction sites. The reinforced steel structure, corrosion-resistant finish and compliance with EN 13374 make it suitable for demanding construction environments where effective protection against falls is essential.
