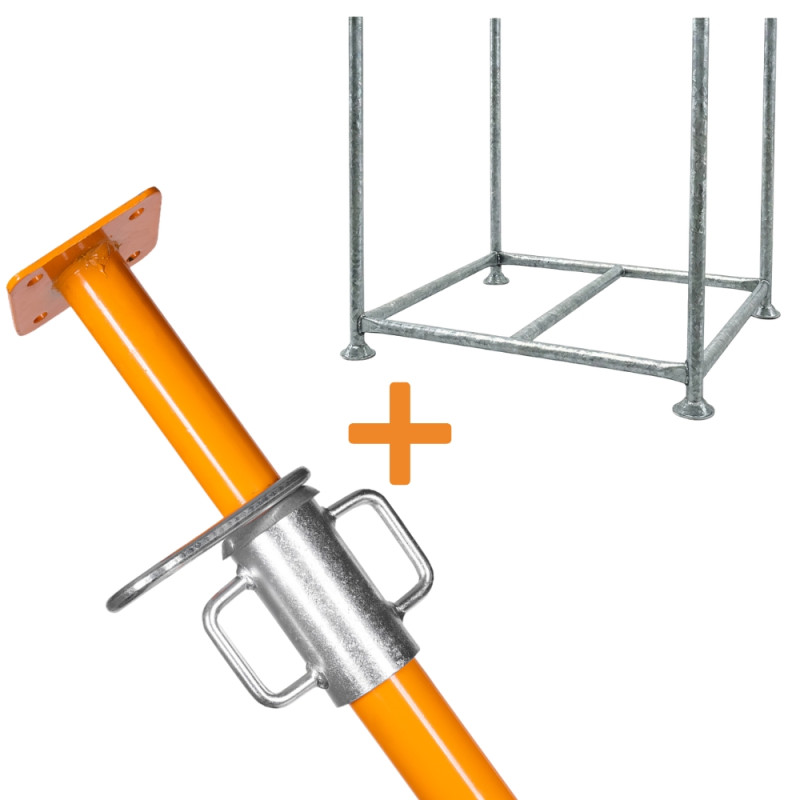

Set of 100 Powder-Coated Construction Props 3m + FREE Storage Cage

Set of 100 Powder-Coated Construction Props 3m + FREE Storage Cage

Set of 100 powder-coated 3m construction props is a reliable and cost-effective solution for slab formwork systems and small to medium reinforced concrete projects. Italian-type steel props provide stable support for slab structures, especially for slabs below 20 cm thickness. The set also includes a FREE 105x105 cm transport pallet/storage cage for convenient storage and transport of props.

Powder-Coated Construction Prop Features

• Load capacity up to 10 kN* – designed for reinforced concrete works and slab formwork systems.
• Powder-coated and oven-cured finish – internal and external tubes are protected against corrosion and paint build-up, preventing jamming during adjustment.
• Galvanized adjustment components – adjustment collar and locking pin (g-pin) are electro-galvanized for increased durability.
• Enhanced safety – a 10 cm hand protection zone prevents crushing injuries at maximum extension.
• 10 cm adjustment intervals – quick and convenient height adjustment.
• Smooth height adjustment – steel threaded collar allows precise positioning.
• Flexible installation – can be installed with the inner tube facing upward or downward.

Technical Specifications

• Type: Powder-coated construction prop – Italian type
• Length: 3 m
• Load capacity: 9.25 kN*
• Tube diameter: 56 / 48.3 mm
• Wall thickness: 1.8 mm
• Base plate thickness: 5 mm
• Base plate dimensions: 120 × 120 mm
• Adjustment: 10 cm intervals + smooth threaded adjustment

* Allowable load determined through axial compression testing using a 1.5x safety factor. This testing method does not include the negative effects of eccentric loading on flat support plates. We recommend positioning props axially to the load direction and avoiding angled installation in accordance with the product technical documentation.

Product Characteristics

The prop structure consists of two tubes: an inner tube with adjustment holes and an outer threaded tube. Additional components include an adjustment nut, locking pin, and base plates. The body is powder-coated, while the nut, pin, and inner tube cover are electro-galvanized for improved corrosion resistance.

105x105 cm Transport Pallet – FREE Storage Cage

The 105×105 cm transport pallet, weighing approximately 20 kg, is a practical storage and transport cage designed for slab props, H20 beams, and scaffolding components.

• Stackable design – saves storage space.
• Forklift compatible – fast and convenient transportation on construction sites.
• Universal use – suitable for props, beams, pipes, and scaffolding components.
• Durable construction – practical solution for contractors and construction companies.
