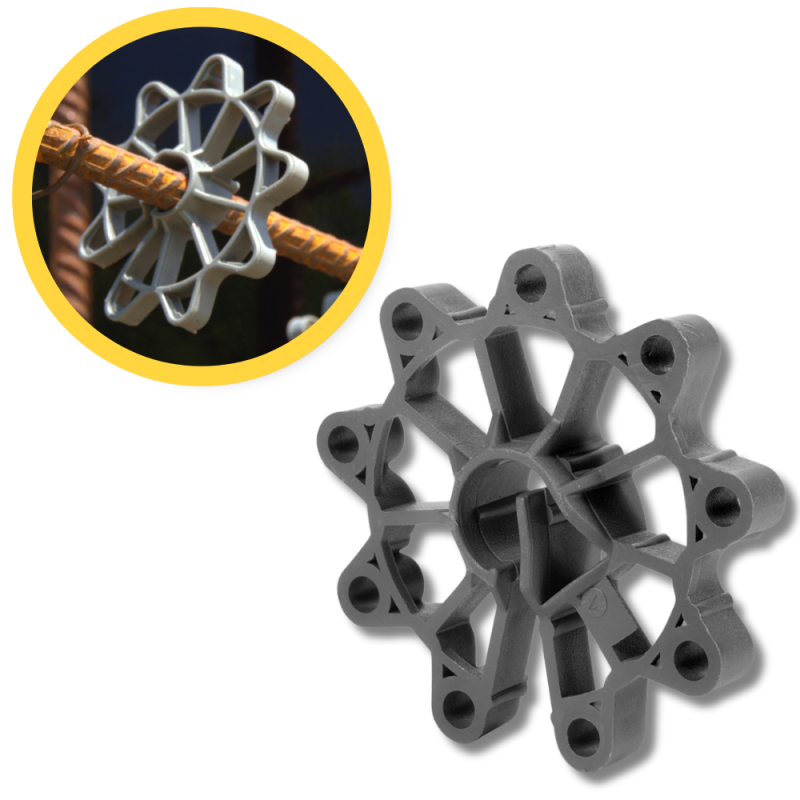

Concrete reinforcement spacer washer 20/4-12mm 1000pcs

Plastic Point Pad LEMON

---

Application

---

• Vertical reinforcement – the pad provides adequate cover around the reinforcing bars, protecting the reinforcement against corrosion and damage.
• Versatile – CYTRYNKA fits rods with diameters from 4 to 20 mm, allowing for a cover from 15 to 50 mm.
• Versatile use – ideal for walls, columns and other structural elements requiring vertical reinforcement.

Installation Method

---

The washer is pressed directly onto the reinforcing bar. The spacing of the washers should be:

• No more than 500 mm for bars with a diameter of Φ10 mm.
• 1000 mm for bars with a diameter of Φ12-20 mm.
• 1250 mm for bars with a diameter above 20 mm.

On the edges of the element the following should be attached:

• 2 supports for elements up to 1 m high.
• 3 pads for elements over 1 m high.

Advantages of the LEMON Pad

---

• Durability – made of colored polystyrene, resistant to bending and pressure.
• Easy installation – the pad is easy to install and does not require additional tools.
• Safety – ensures adequate distance and minimizes the risk of corrosion of reinforcing bars.

Available Sizes

---

Our offer includes CYTRYNKA pads with various cover thicknesses: 15 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm and 50 mm.

Other Products

---

We also offer spacers for horizontal reinforcement , spacer strips and other accessories for concrete reinforcement.
