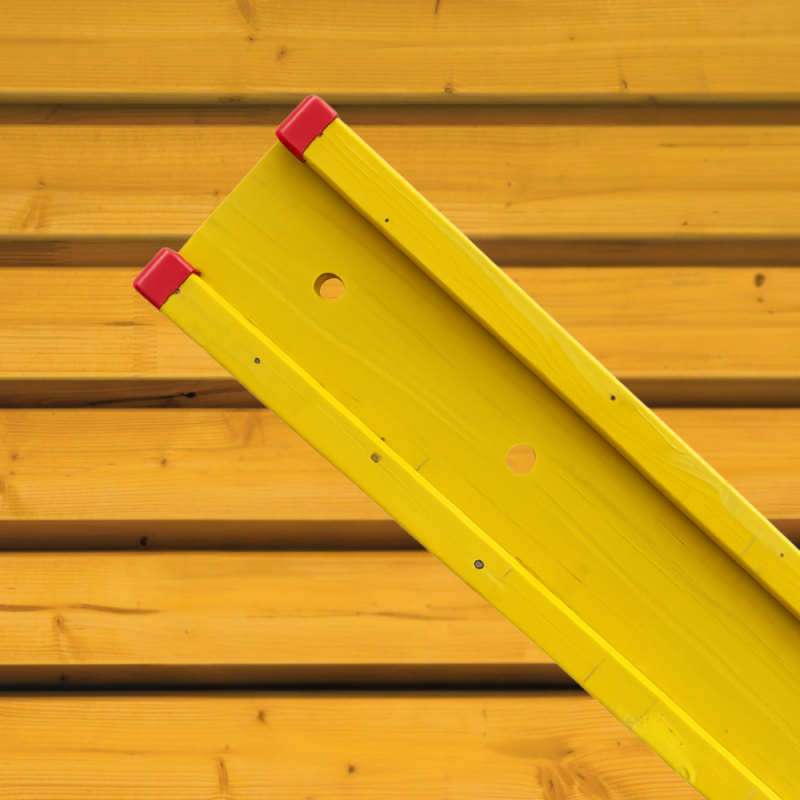

H20 Timber Beam 1,90m - SET OF 50 (95 m)

H20 Timber Beam Reinforced / H-BEAM – 95 lm Set

Professional H20 formwork beam designed for slab and wall shuttering systems. Manufactured from high-quality spruce wood and AAA-grade poplar plywood, ensuring high strength, stability, and durability during intensive use on construction sites.

H20 beams are used for slab formwork, wall formwork, and support structures in residential, industrial, and infrastructure construction projects.

Technical Specifications:

• Product type: H20 beam / H-BEAM
• Weight: 9,31 kg/rm
• Height: 200 mm
• Width: 80 mm
• Flange thickness: 40 mm
• Web thickness: 27 mm
• Bending load value: 5.0 kN/m
• Minimum shear force: 11.2 kN
• Maximum deflection: 1/500
• Permissible working load: 1.4 kN/m

Materials:

• Top and bottom flange: spruce wood
• Web: AAA-grade poplar plywood
• Surface: yellow impregnated WBP phenolic coating

Available Lengths:

• 1,45 m
• 1,90 m
• 2,10 m
• 2,45 m
• 2,65 m
• 2,90 m
• 3,30 m
• 3,60 m
• 3,90 m

Product Advantages:

• high resistance to loads
• excellent structural rigidity
• lightweight design for easy transport and installation
• durable coating resistant to moisture and construction site conditions
• high-quality workmanship
• designed for multiple reuse

H20 beams are a proven solution used in modern formwork systems, ensuring safety and comfort during construction work.
